Jump Devices

Feel the Rush!

QuickFlight free fall devices are engineered for precision and safety, featuring robust cords, reliable harnesses, and cutting-edge braking systems to ensure a smooth and exhilarating jump. Whether you’re a thrill-seeker or a first-timer, our devices deliver a heart-pounding experience with every leap.

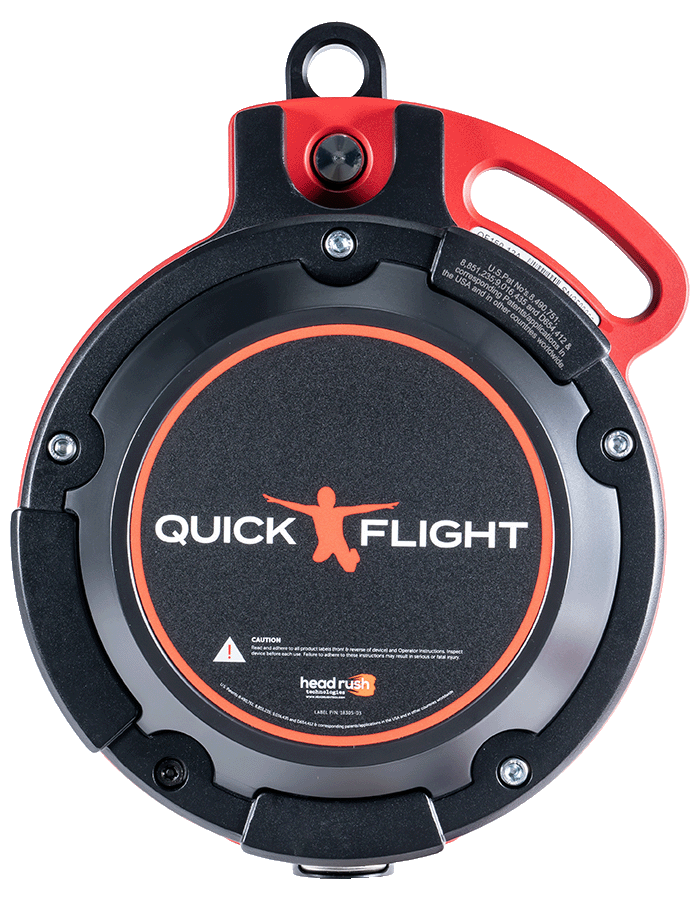

QuickFlight

  • Bringing the thrill of free fall to all!
  • Scream factor: Unruly
  • Free fall distance: 9.8ft (3m) – 6.6ft (2m)
  • Rider size 44 lbs (20kg) – 285lbs (130kg)
Minimum Mounting Height – 6.0 m (19.7 ft)
Maximum Mounting Height – 8.3 m (27.2 ft)
Minimum Mounting Height – 8 m (26.3 ft)
Minimum Mounting Height – 8 m (26.3 ft)
Minimum Mounting Height – 9 m (29.6 ft)
Maximum Mounting Height – 15.3 m (50.01 ft)

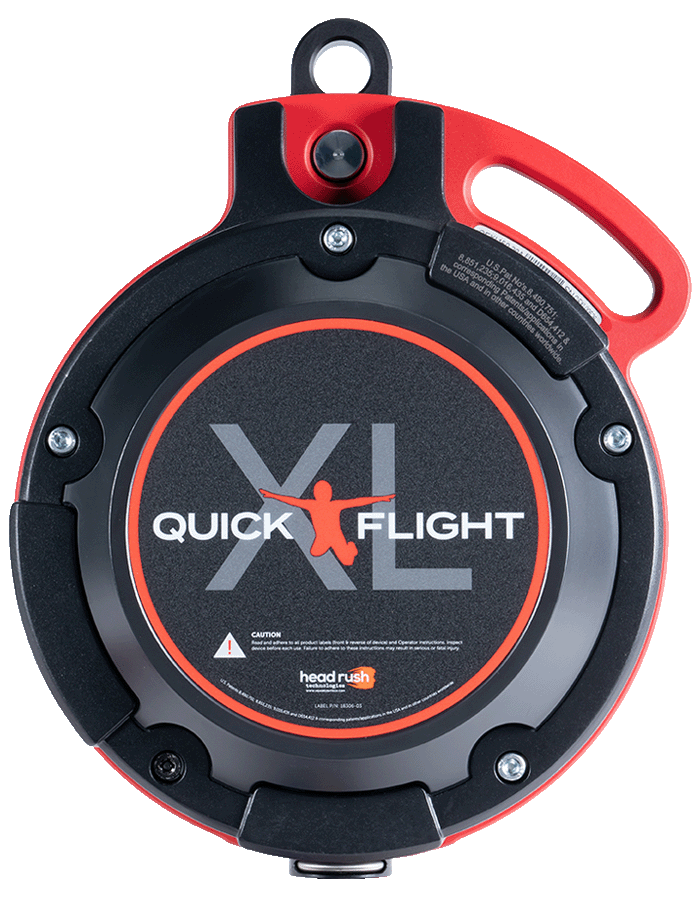

QuickFlight XL

  • A longer free fall for a wilder ride.
  • Scream factor: Raucous
  • Free fall distance 13ft (4m) – 9.8ft (3m)
  • Rider size 44lbs (20kg) – 285lbs (130kg)
Minimum Mounting Height – 12 m (39.4 ft)
Maximum Mounting Height – 21.8 m (71.5 ft)
Minimum Mounting Height – 13 m (42.7 ft)
Maximum Mounting Height – 23.0 m (75.4 ft)

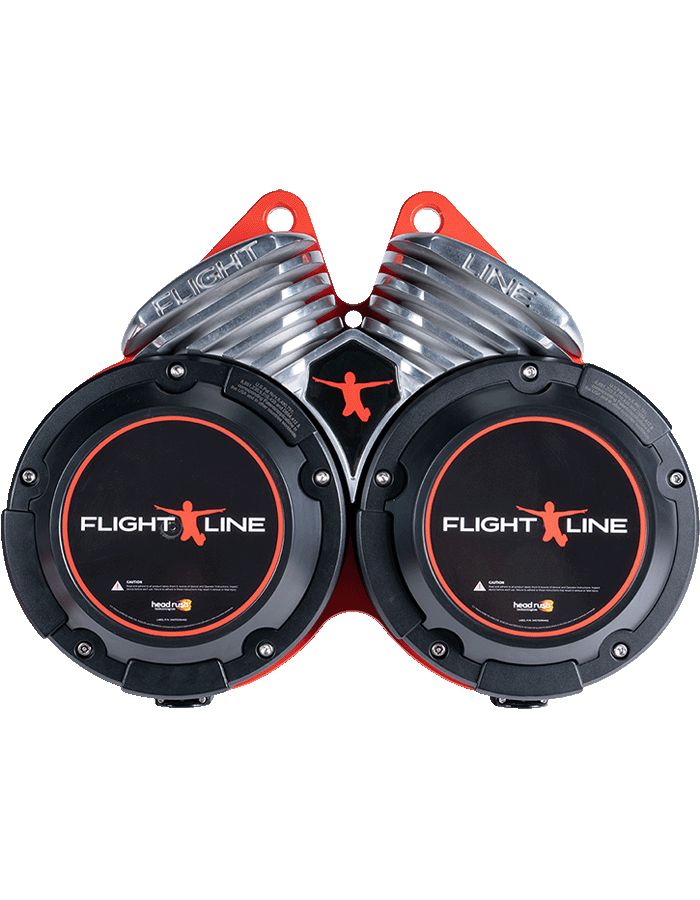

FlightLine

  • FlightLine is the definition of “wow” factor.
  • Scream factor: Ear-splitting
  • Free fall distance 36ft (11m) – 20ft (6m)
  • Rider size 75lbs (34kg) – 250lbs (113kg)
FlightLine with a 4.5m RipCord provides a free fall of approximately 4.5 m (15 ft).
Dimensions: 615 x 457 x 234 mm (24.2 x 18 x 9.2 in)
Device Weight: 59 kg (130 lbs)
Rated Working Capacity: 34 to 113 kg (75 to 250 lbs)
Standard Configuration
Minimum Mounting Height*: 18.5 m (60 ft)
Maximum Mounting Height*: 23 m (75 ft)
Minimum Distance – Nozzle to Platform: 1.8 m (6 ft)
Maximum Distance – Nozzle to Platform: 2.1 m (7 ft)
Jump Over Configuration
Minimum Mounting Height*: 21 m (69 ft)
Maximum Mounting Height*: 23 m (75 ft)
Maximum Distance – Nozzle to Platform: 1.2 m (4 ft)
* This distance is from the device nozzle to the landing zone and is dependent on the RipCord length. Mounting heights are subject to change.
Dimensions: 615 x 457 x 234 mm (24.2 x 18 x 9.2 in)
Device Weight: 59 kg (130 lbs)
Rated Working Capacity: 34 to 130 kg (75 to 285 lbs)
Standard Configuration
Minimum Mounting Height*: 20 m (65 ft)
Maximum Mounting Height*: 24.5 m (80 ft)
Minimum Distance – Nozzle to Platform: 1.8 m (6 ft)
Maximum Distance – Nozzle to Platform: 2.1 m (7 ft)
Jump Over Configuration
Minimum Mounting Height*: 23 m (75 ft)
Maximum Mounting Height*: 24.5 m (80 ft)
Maximum Distance – Nozzle to Platform: 1.2 m (4 ft)

Key Features:

Magnetic Braking

Our magnetic braking technology enables QuickFlight XL to offer an unrestricted ‚”true free fall‚” up to 4m (13 ft). True free fall combined with a high GPA (ground proximity awareness) factor results in a complete free-fall experience truly unlike anything in the industry.

Durable

Mount the QuickFlight XL indoors or out up to 23m (75 ft). A wide range of weights (20-130kg/44-285lbs) and mounting options allow for a custom-free fall experience that is compatible with the height of your structures and the comfort levels of your clientele.

Low Maintenance

The QuickFlight XL retracts quickly and safely, allowing for more throughput than other free fall devices. Easy installation, portability, and field replaceable parts mean you’ll save more over time, watching your customers free fall while your profits skyrocket!

Reliable

Eddy Current, Magnetic Braking Technology. Magnetics allows for a compact design that is easy to install, carry, and service, making it perfect for a top anchor on an existing tower or platform. Eddy current, magnetic braking used in free fall offers a soft catch and smooth descent, cycle after cycle.
